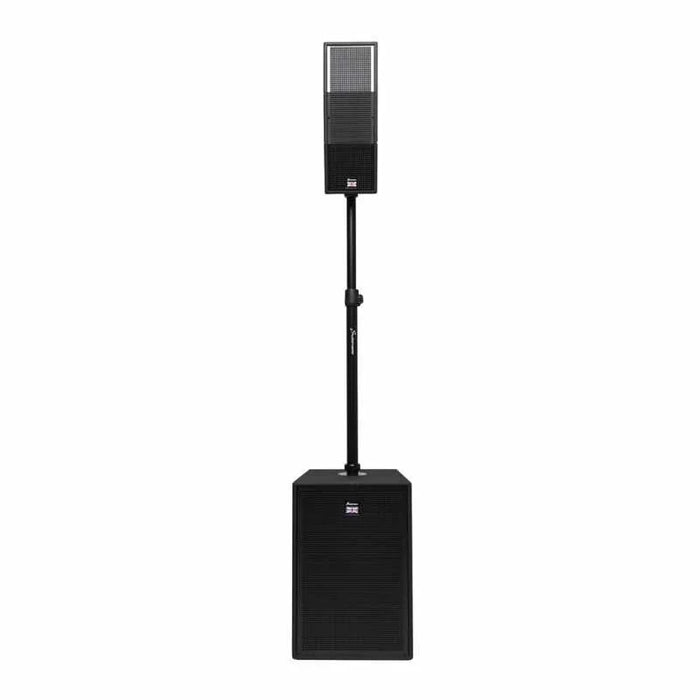

Studiomaster Core 121 12" Subwoofer and Column Speaker with Built-In Analog Mixer for Superior Audio Performance
The new CORE system from Studiomaster uses a specially designed curved array to provide a controlled and highly effective sound diffusion.
Combining the curved array with a powerful bass reflex subwoofer giving up to 2800W of low end power, the whole system can provide 4400W peak (1100W RMS) in a compact, portable system that will give you the reach and sonic quality expected of an ultra compact array system.
To complete the system, the CORE comes with a built-in 4 channel mixer, with DSP control and Bluetooth® connectivity.
The CORE system is designed to be simple to set-up and use. The air-suspension adjustable speaker pole includes internal wiring, so just lift and place the lightweight curve array on top of the pole. Connect your power and you are good to go! Truly an ALL-IN-ONE system. Perfect for any performance.
Features
| • SUB SPECIFICATION: • Speaker – 1×12” low-frequency driver • Rated power (SUB) – 700W (rms) • Amplifier power – 700W (LF) + 300W (MF/HF) (rms) • Max SPL – 128dB • Dimensions – 405mm x 590mm x 470mm • Net weight – 27kg • • CURVE ARRAY SPECIFICATION: • Speaker MF – 3×5” Neodymium full range driver |
• Speaker HF – 9×1” dome tweeter • Rated power – 300W • Coverage – 100° (h) x 70° (v) • Dimensions – 185mm x 495mm x 220mm (315mm max) • Net weight – 8kg • • MIXER SPECIFICATION: • DSP – 24bit module with mode, EQ, limiter, delay and mix level control • Inputs – 2x mic (XLR) / line (6.35mm jack) balanced, 1x instrument Hi-Z (6.35mm jack), 1x stereo line (RCA phono) / Bluetooth® • Outputs – 2x balanced line / link output (XLR), 1x balanced line / link MIX output (XLR) |
